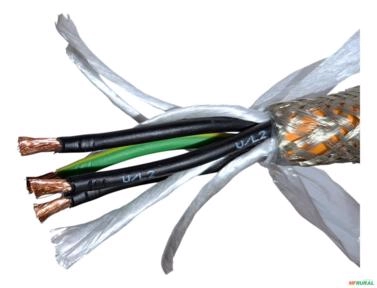

Cabo múltiplo PP 4x4mm² 4G4 PUR LEC 003717 LEONI Kabel GmbH

Comprimento: 89 metros

LEONI Kabel GmbH

LEONI Part No.: 95040141A
LEC 003717 Rev.0

cable description

Pos. 1 - 4 insulated wires 4,0 mm²
conductor: bare copper, single wire 0,15 mm in accordance to DIN EN 60228 cl. 6
insulation: PP
colours: black wires with white marking U/L1/C/L+, V/L2, W/L3/D/L-, greenyellow

Pos. 2 - tapings

Pos. 3 - filler

Pos. 4 - shielding
braiding of tinned copper wires 0,15 mm
optical covering min. 85 %

Pos. 5 - outer jacket
Polyurethan: in accordance to DIN VDE 0282 Teil 10 / HD22.10 S2
colour: orange mat following RAL 2003
overprint in black with Inkjet: LEONI LRO FieldLink MC LEC 003717 Rev.0 [4x4,0] XX/YYYY E47543 AWM STYLE 21223 I/II A/B 80°C 1000V FT-1 VDE-REG.NR. 8407
XX: production week
YYYY: production year

outer diameter: 11,9 ± 0,4 mm

Electrical properties

operating voltage
- Pos. 1 U0 /U 0,6/1,0 kV
- Pos. 1 according max. 1000 V
test voltage
- conductor/conductor 4,0 kV 50Hz AC
- conductor/shield 4,0 kV 50Hz AC
conductor resistance
- max. 4,95 Ohm/km at +20°C

Mechanical properties

bending radius
- for fixed installation min. 5 x outside diameter
- for drag chain installation min. 90 mm
acceleration
- max. 50 m/s²
traversing speed
- max. 300 m/min
bendings in drag chains
- min. 10.000.000
torque at a lenght of 1000 mm
- max. +- 30 degree
horizontal lenght of the cable
- max. 50 m
total weight
- nom. 271 kg/km

Thermal properties

treatment and installation: -20°C bis +60°C
transport and stocking: -50°C bis +80°C
operating
- for fixed installation: -50°C bis +80°C
- for drag chain installation: -20°C bis +60°C
short cut: max. +150°C (< 5 sec.)

Chemical properties

oil resistant in accordance to VDE 0282 part 10 / HD 22.10 S2 (test method to EN60811-2-1)
flame retardant in accordance to UL 1581 Vertical Wire Flame Test (VW-1)
flame retardant in accordance to CSA C22.2 Vertical Flame Test (FT-1)
flame retardant in accordance to IEC 60332-1-2
halogen free in accordance to EN 50267-2-2 / IEC 60754-2
free of silicon and FCKW
the cable corresponds to EU ? directive 2002/95/EG (RoHS)
