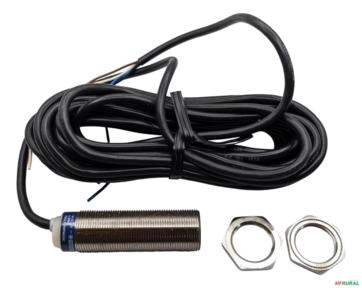

Sensor indutivo M18 PNP NPN NA NF programável - Schneider

XS1M18KP340L1

Main
Range of product: Telemecanique Inductive proximity sensors XS
Series name: General purpose
Sensor type: Inductive proximity sensor
Sensor name: XS1
Sensor design: Cylindrical M18
Size: 60 mm
Body type: Fixed
Detector flush mounting acceptance: Flush mountable
Material: Metal
Type of output signal: Discrete
Wiring technique: 4-wire
[Sn] nominal sensing distance: 5 mm
Discrete output function: 1 NO or 1 NC programmable
Output circuit type: DC
Discrete output type: PNP and NPN
Electrical connection: Cable
Cable length: 5 m
[Us] rated supply voltage: 12...24 V DC with reverse polarity protection
Switching capacity in mA: <= 200 mA with overload and short-circuit protection
IP degree of protection: IP68 double insulation conforming to IEC 60529

Complementary
Thread type: M18 x 1
Detection face: Frontal
Front material: PPS
Enclosure material: Nickel plated brass
Operating zone: 0?4 mm
Differential travel: 1...15% of Sr
Cable composition: 4 x 0.22 mm²
Wire insulation material: PVC
Status LED: Output state: 1 LED (yellow)
Supply voltage limits: 10?36 V DC
Switching frequency: <= 2000 Hz
Maximum voltage drop: <2.6 V (closed)
Current consumption: 0...10 mA no-load
Maximum delay first up: 5 ms
Maximum delay response: 0.15 ms
Maximum delay recovery: 0.35 ms
Marking: CE
Threaded length: 51 mm
Length: 60 mm
