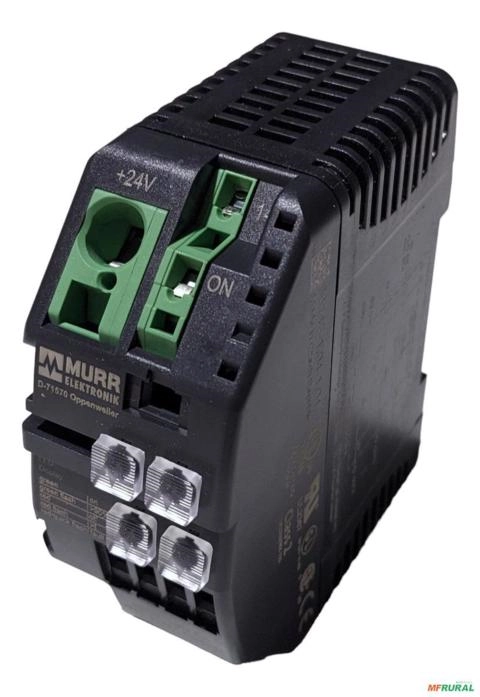

Monitor De Corrente Murr Mico Basic 4.4

Monitor De Corrente Murr Mico Basic 4.4

MICO BASIC 4.4
4 channels
Current adjustment 4 A

Dados tecnicos

ELECTRICAL DATA | INPUT
Input voltage DC: 24 V
Input voltage DC min.: 18 V
Input voltage DC max.: 30 V
ON input voltage control inputs min.: 10 V
ON input voltage control inputs max.: 30 V
ON pulse length control inputs high min.: 20 ms
Total current bridge set max.: 40 A

ELECTRICAL DATA | OUTPUT
Switch-on capacity per channel max.: 20 mF
Switching current max.: 20 mA

INSTALLATION
Connection cross-section inputs max.: 16 mm²
Connection cross-section outputs max.: 4 mm²
Connection cross-section control inputs / control outputs max.: 2,5 mm²

MECHANICAL DATA | MOUNTING DATA
Mounting method: sobrepor
Suitable for mounting type: Mounting rail TH35, (EN 60715)
Height: 90 mm
Width: 36 mm
Depth: 80 mm

ENVIRONMENTAL CHARACTERISTICS | CLIMATIC
Operating temperature min.: 0 °C
Operating temperature max.: 55 °C
Storage temperature min.: -40 °C
Storage temperature max.: 80 °C
